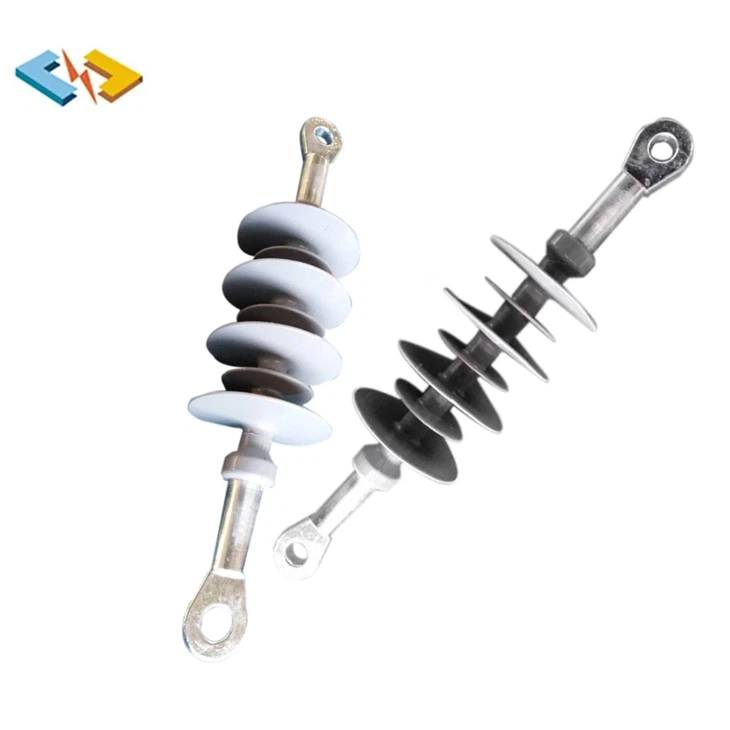

15kV 110kN Composite Dead End Insulator

Composite Dead End Insulator

A shackle insulator is a type of electrical insulator designed to support and electrically isolate conductors from their supporting structures. Power Shackle insulators play a crucial role in ensuring the safe and efficient operation of overhead power lines. They are also referred to as electircal suspension insulators or Power Transmission string insulators. These devices are typically made from materials such as porcelain, composite, or glass.

Tensile Applications
• Suspension & Dead-end Insulators.
• Small OD Core Rods [Transmission Class – 16 mm, 18 mm, 24 mm, and above, customized available]
• End fitting geometry governed by Standards (Ball, Socket, Y-Clevis, Clevis, Tongue,Eye).
• SML = Specified Mechanical Load = Rated Ultimate load.(70kN, 120kN, 160kN, 210kN)
• RTL = Rated Tensile Load = Working Load [standards define as 50% of SML but can vary by customer specification / definition for RTL ratings).

Silicone Rubber:

The core of composite insulators typically uses materials such as epoxy resin fiberglass pultruded rods, epoxy resin fiberglass wound tubes, porcelain, and resin. The core is the inner insulating component and also bears the mechanical functions (tension, bending, torsion, compression). For hollow insulators, the core also serves as a container for high-voltage electrical products.

The sheaths of composite insulators use materials such as silicone rubber, EPDM rubber, resin, and PTFE. However, silicone rubber is commonly used. The sheaths are the outer insulating component, providing necessary creepage distances and protecting the core from external environmental factors and electrolytic corrosion.

Porcelain, glass, and composite insulators differ in their structures and the functions their materials perform. Porcelain and glass insulators are structures using a single insulating material, with both mechanical and electrical functions handled by that material. Composite insulators, on the other hand, distribute these functions among different materials, allowing each material to perform its optimal function.

1.Do you have a catalog? Could you send me your catalogue?
We have a catalogue. Please contact us, we can send you product catalog online or email.

2.Do you have type test report for polymer insulators?

Yes, we have several type test reports for polymer insulators across different voltage ratings.

All reports are issued by an independent laboratory certified by CNAS.

3.Are you a manufacturer or a trading company?

We are a professional manufacturer of composite insulators, with our own R&D team and production facilities.

We also welcome you to conduct an online video factory inspection at any time.

4.What products do you mainly produce?

We mainly produce composite insulators, including suspension insulators, pin insulators, post insulators, line post insulators, and related composite insulation products.

5.What is your delivery time?

Standard products can usually be delivered within 1–2 weeks based on available materials. Delivery time for customized products depends on order quantity and technical requirements.
