The composite crossarm insulator can effectively use the narrow corridor to open pressure and send electricity, and can reduce the height of the tower, which can save a lot of manpower, material resources and financial resources. Because of its high bending strength, it can prevent the cascade cracking accident that simply occurs in the porcelain crossarm, which cannot be replaced by the porcelain crossarm.Small in size, light in weight, strong in shock and shock resistance, no manual cleaning is needed to ensure safe operation.
Model | Rated | Specified Cantilever Load | Structure | Insulation Distance | Creepage Distance | Lightning Impulse | Power Frequency Withstand Voltage (Wet 1min. ) |
(kV) | （kN） | （mm） | （mm） | （mm） | （kV） | (kV) | |

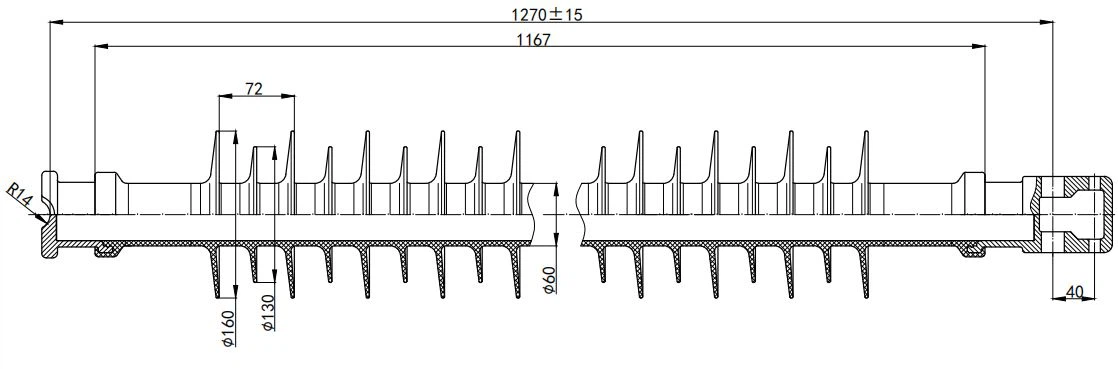

FS-110/5 | 110 | 5 | 1270±15 | 1167 | 3200 | 550 | 230 |
Model | Rated | Specified Cantilever Load | Structure | Insulation Distance | Creepage Distance | Lightning Impulse | Power Frequency Withstand Voltage (Wet 1min. ) |
(kV) | （kN） | （mm） | （mm） | （mm） | （kV） | (kV) | |
FS-110/10 | 110 | 10 | 1440±20 | 1250 | 3250 | 550 | 230 |
