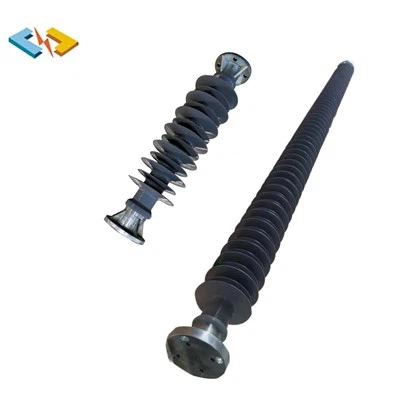

Composite Station Post Insulator

The basic structure of a single element is composed of upper and lower flanges, umbrella sleeves and intermediate cores. The pillars with high voltage levels are composed of multiple sections of elements connected by bolts.

The intermediate core has a single solid core pull-out rod structure, a multi-solid core combined pull-out rod structure, a single solid core pull-out rod plus a winding structure, and a hollow belt inner umbrella group structure.

70mm

90mm

Customized Size

Base without reinforcing ribs

Base with reinforcing ribs

Customized Size

Different types of silicone composite insulators have different functions, and the structural height and creepage distance are also different. Silicone composite insulators are mainly used in substations and have good hydrophobicity, aging resistance, resistance to leakage tracking and electrical erosion. It has high tensile strength and bending strength, high mechanical strength, good impact resistance, shock resistance and anti-brittle fracture performance, light weight, easy installation and maintenance, and the installation dimensions of the upper and lower ends are the same as those of the corresponding porcelain post insulators, and can be used interchangeably.

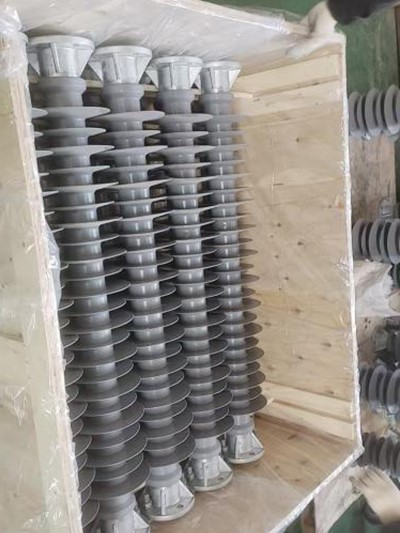

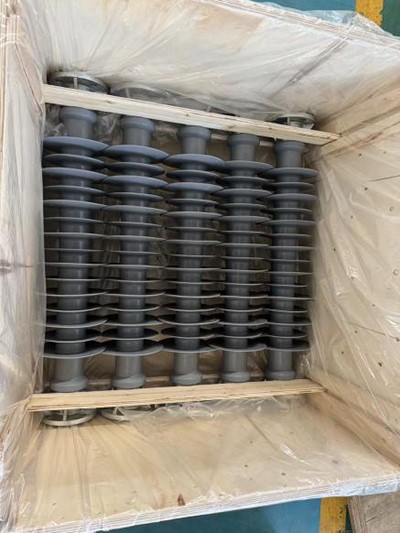

 All composite insulators are packed in weatherproof containers in order to protect the products during land, air, and sea transportation. Several different grades of packaging can be offered depending on the mode of transport and the expected storage conditions. The packaging options that we offer are

• Standard grade/prefabricated packing
• Economical grade/cardboard carton
• Best grade/closed wooden crate



Since the user best knows their crate requirements, they should select the option that is most suited to their needs and include that information in the purchasing specification. Special packaging arrangements can be accommodated upon request.



 Each container is marked with the number of insulators it contains, the catalog number, the manufacturer's name, and any other customer requests.



 Each packing (wooden Cases or Paper ubes) attached specification and certification of products.

United Sates, Canada, Mexico, Honduras, Trinidad and Tobago, Paraguay, Dominican Republic, Brazil, Costa Rica, Argentina, Venezuela, Chile, Peru, Ecuador, Malawi, Ghana,Togo, Egypt, Ethiopia, Mozambique, Samoa Sweden, Norway, France, Belgium, Czech Republic, Poland, Bulgaria, Romania, Jordan, Oman, Pakistan, Uzbekistan, Afghanistan, Kyrghyzstan, VietNam, Cambodia, Philippines, Sri Lanka, Indonesia,Thailand, Papua New Guinea, Australia, New Zealand...5 continents 45+ counties.

We have been participating in various exhibitions at home and abroad from 2010 to 2020. At the exhibition, relevant people from the industry and us saw our products directly and closely.

Find professional composite station post insulator manufacturers and suppliers in China here. With more than 10 years' experience, we warmly welcome you to wholesale high quality composite station post insulator for sale here from our factory. Good service and competitive price are available.
