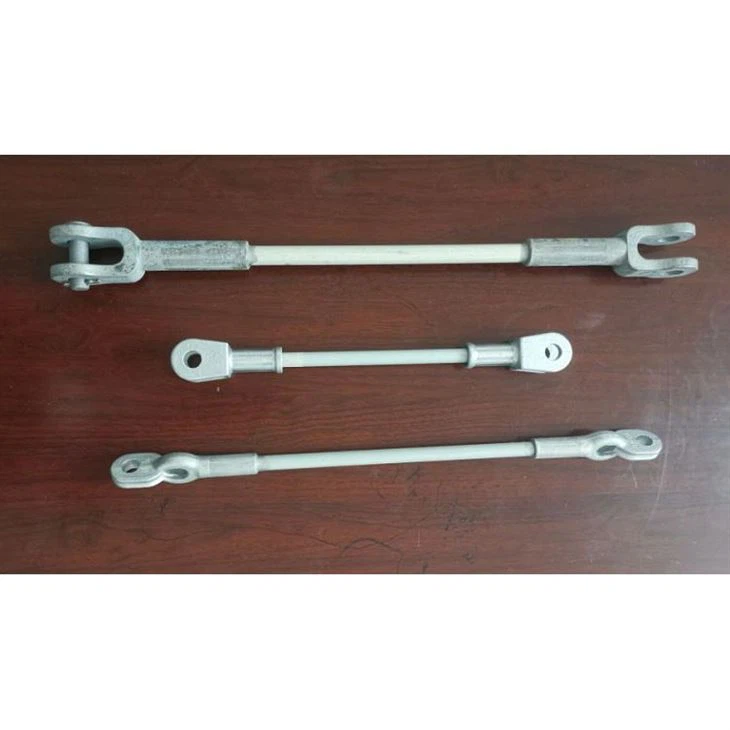

Composite Stay Insulator with Clevis
Products Description
Composite stay type insulator, 10kV to 330kV, 70kN to 222kN.
Product Details:
We produce 10kV to 330kV Composite Stay insulators. It has been used for guy wires and overhead transmission and distribution lines.
Payment & Shipping Terms:
|
Minimum Order Quantity: |
100 pcs |
|
Price: |
Negotiable |
|
Packaging Details: |
Plywood cases or as client requirement |
|
Delivery Time: |
30~60 days EXW Wuhan |
|
Payment Terms: |
T/T, L/C |

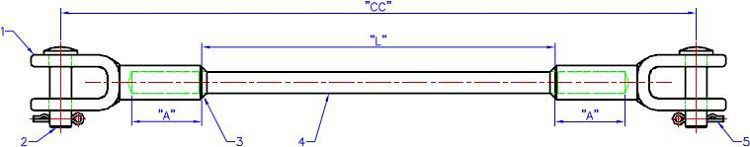

TECHNICAL DATA:
16000lbs (70kN) RBS
|
Strength class (kips) |
Fittings |
Insulating length (in) |
Clevis Options |
Overall C‐C Length (in) |
Weight ea (lbs) |
Electrical |
|
|
Dry kV |
Wet kV |
||||||
|
GSI16 |
TT/TC/TR/CC/R/RR |
12 |
(none)/BNK |
24 |
3.14 |
90 |
45 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
18 |
(none)/BNK |
30 |
3.29 |
126 |
67.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
24 |
(none)/BNK |
36 |
3.43 |
180 |
90 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
30 |
(none)/BNK |
42 |
3.57 |
225 |
112.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
36 |
(none)/BNK |
48 |
3.64 |
270 |
135 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
42 |
(none)/BNK |
54 |
3.79 |
315 |
157.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
54 |
(none)/BNK |
66 |
4.07 |
405 |
202.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
60 |
(none)/BNK |
72 |
4.14 |
450 |
225 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
78 |
(none)/BNK |
90 |
4.57 |
585 |
292.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
90 |
(none)/BNK |
102 |
4.71 |
675 |
337.5 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
96 |
(none)/BNK |
108 |
4.93 |
720 |
360 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
120 |
(none)/BNK |
132 |
5.43 |
900 |
450 |
|
GSI16 |
TT/TC/TR/CC/R/RR |
144 |
(none)/BNK |
156 |
5.93 |
1080 |
540 |
5/8" bolt/pin
Custom lengths and strength available on request
Other fittings available if required
TT = thimble eye ‐ thimble eyeR = Clevis 1 Roller
TC = thimble eye ‐clevis no rollerRR = Clevis 2 Rollers
CC = Clevis ‐ ClevisBNK = Bolt‐nut key instead of pin for clevis TR = thimble eye ‐clevis with roller
Ex: GSI16TR78BNK
= GSI 16000lbs 78" insulating length, thimble eye clevis with 1 roller and bolt nut key
36000lbs (160kN) RBS
|
Strength class (kips) |
Fittings |
Insulating length (in) |
Clevis Options |
Overall C‐C Length (in) |
Weight ea (lbs) |
Electrical |
|
|
Dry kV |
Wet kV |
||||||
|
GSI35 |
TT/TC/TR/R/RR |
12 |
(none)/BNK |
24 |
4.4 |
90 |
45 |
|
GSI35 |
TT/TC/TR/R/RR |
18 |
(none)/BNK |
30 |
4.6 |
126 |
67.5 |
|
GSI35 |
TT/TC/TR/R/RR |
24 |
(none)/BNK |
36 |
4.8 |
180 |
90 |
|
GSI35 |
TT/TC/TR/R/RR |
30 |
(none)/BNK |
42 |
5 |
225 |
112.5 |
|
GSI35 |
TT/TC/TR/R/RR |
36 |
(none)/BNK |
48 |
5.1 |
270 |
135 |
|
GSI35 |
TT/TC/TR/R/RR |
42 |
(none)/BNK |
54 |
5.3 |
315 |
157.5 |
|
GSI35 |
TT/TC/TR/R/RR |
54 |
(none)/BNK |
66 |
5.7 |
405 |
202.5 |
|
GSI35 |
TT/TC/TR/R/RR |
60 |
(none)/BNK |
72 |
5.8 |
450 |
225 |
|
GSI35 |
TT/TC/TR/R/RR |
78 |
(none)/BNK |
90 |
6.4 |
585 |
292.5 |
|
GSI35 |
TT/TC/TR/R/RR |
90 |
(none)/BNK |
102 |
6.6 |
675 |
337.5 |
|
GSI35 |
TT/TC/TR/R/RR |
96 |
(none)/BNK |
108 |
6.9 |
720 |
360 |
|
GSI35 |
TT/TC/TR/R/RR |
120 |
(none)/BNK |
132 |
7.6 |
900 |
450 |
|
GSI35 |
TT/TC/TR/R/RR |
144 |
(none)/BNK |
156 |
8.869 |
1080 |
540 |
3/4" bolt/pin
Custom lengths and strength available on request
Other fittings available if required
STANDARDS:
IEC61109, IEC60383, ANSI, GB,
RAW MATERIALS:
1. End-fitting:
1.1 Material:
Clevis: Forged Steel or cast steel, Hot Dip Galvanized.
1.2 Minimum thickness of the galvanization: 86μm.
2.Core:
2.1 Material: Epoxy & Glass Fiber, Acid-Resistant Type.
2.2 Diameter: Φ16 to 30 mm.
Customized items:
We could provide kind of items based on clients requirement:
Hot Tags
guy stay insulator, guy insulator, stay insulator, guy strain insulator, guy line insulator,
guy stay insulator hardware, guy insulator fittings, stay insulator for pole, guy wire insulator, pole guy insulator
