15kV DS Insulator Technical Data:
| Color: | Red/Gray | Height: | 320±5 Mm |
Creepage Distance: | ≥450mm | Sheds: | 4 |
End Fitting: | Tongue&Tongue | Standard: | IEC61109 |
Dry. Arcing Distance: | ≥190mm | Weight: | 1.1kg |
Rod Diameter: | 16mm φ | Galvanization Thickness: | ≥86μm |
Product Details:
Place of Origin: | China |

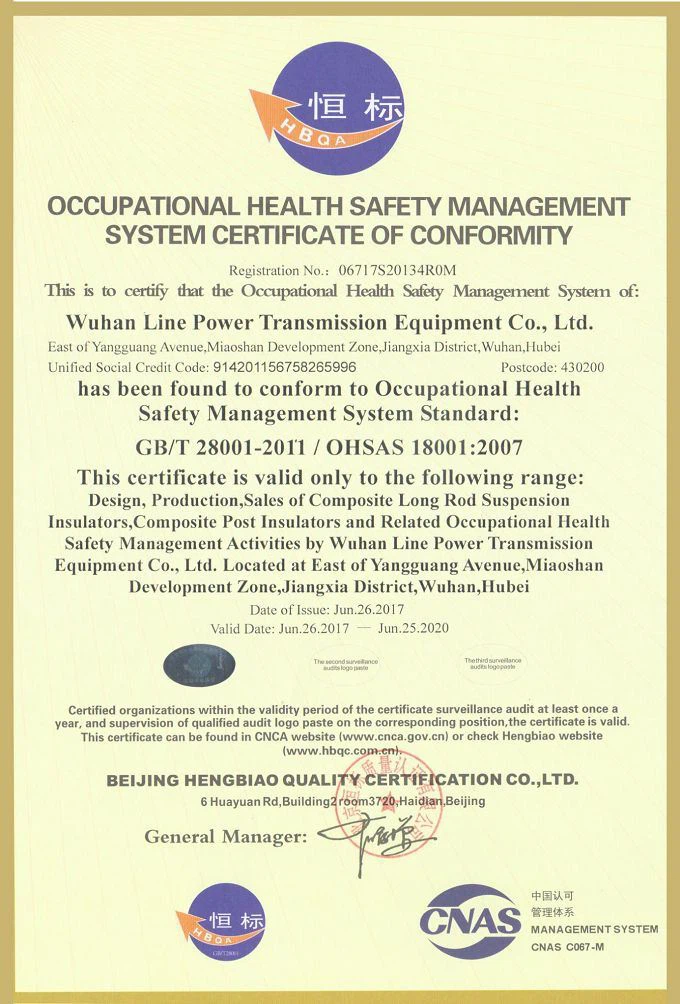

Certification: | ISO 9001, ISO14001, ISO 18001 |
Model Number: | FXBW-15/70 (H=320) |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000 pcs |
Price: | Negotiable |
Packaging Details: | Plywood cases, solid wood cases or cartons on pallet |
Delivery Time: | 30-40 Working Days，the second order could be faster as we could arrange the stocks for the client. |
Payment Terms: | T/T or LC |
Supply Ability: | 8pcs/20Min in one machine. |
Composite Dead End Insulator
Features:
1) Manufactured by means of injection whole-molding technology
2) The juncture between end fitting and core is totally embedded in HTV silicone
3) Rubber, eliminating conventional and traditional seal defects
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hot DIP Galvanized Cast Iron/steel for Tongues and Clevis.
Electromechanical specifications:
1) Rated voltage: 15kV
2) Wet Power Frequency Withstand Voltage ≥50kV
3) Dry Lightening Impulse Withstand Voltage ≥75100kV
4) Specified Mechanical Load(SML):70kN
5) Routine Test Load(RTL):35kN

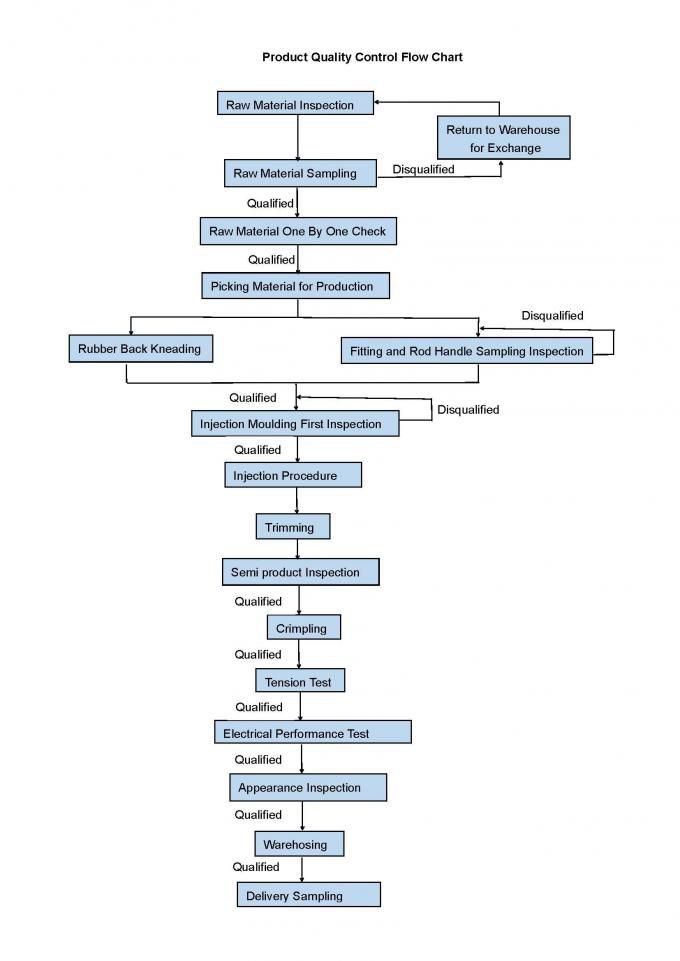

About Our Quality Control:
|
After years of development, our products have been trusted by customers. The quality of 15kv 70kn Composite Polymer Dead End Insulator is reliable, and it is in a favorable position among domestic counterparts. We try our best to build the scientific management model, to learn abundant professional knowledge, to develop advanced production equipment and production process, to create the first-call quality products, reasonable price, high quality of service, quick delivery, to give you create new value. With high quality, reasonable price, on-time delivery and customized & customized services to help customers achieve their goals successfully, our company has got praise in both domestic and foreign markets.
