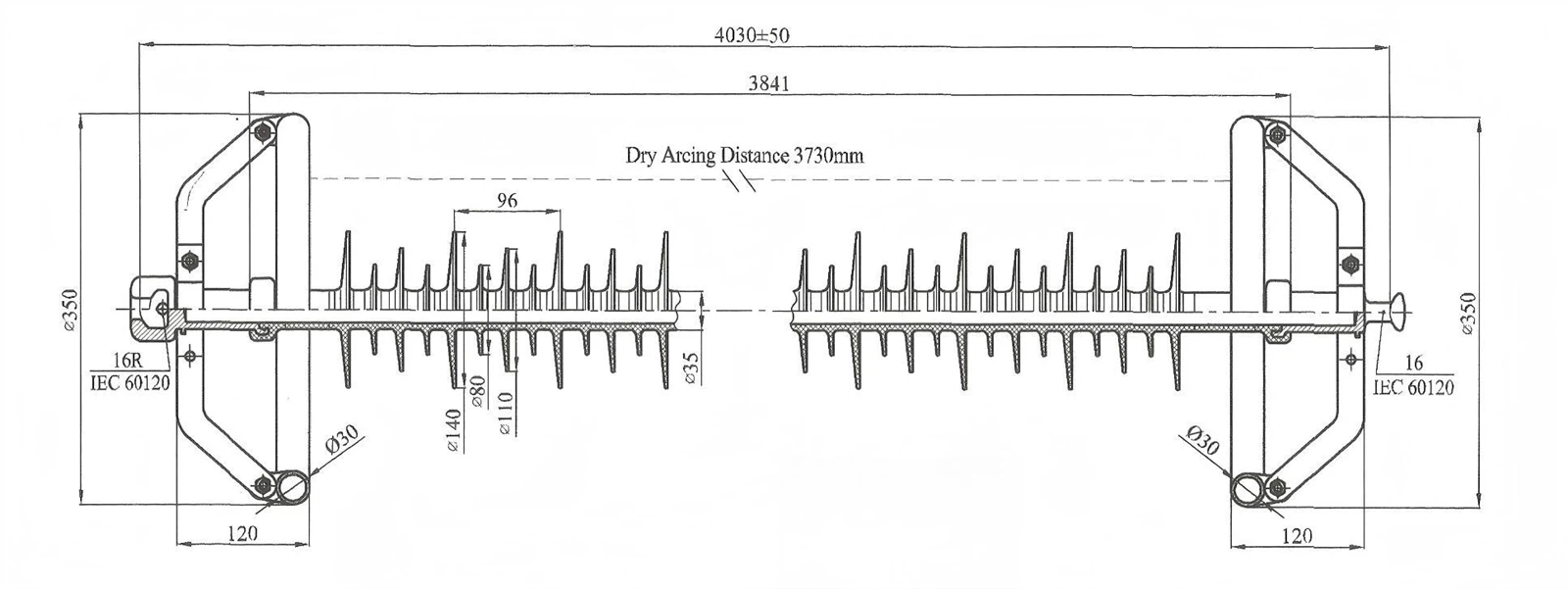

Technical Drawings & Dimensions

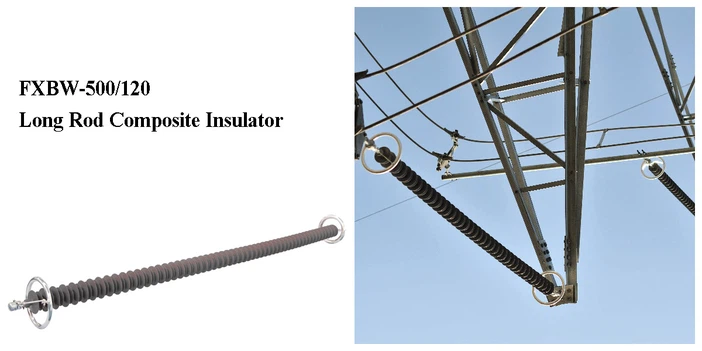

Our composite insulators are made of a glass fiber epoxy core rod, silicone rubber sheds, and metal fittings. The silicone sheds use a full-pressure technique, which solves a key problem – electric spark punctures at the interface – so the insulator stays reliable. The glass fiber rod is connected to the metal fittings with advanced crimping technology, and we have a full automatic ultrasonic system to check for defects. They are strong, compact, lightweight, and look nice. The metal fittings are galvanized to prevent corrosion. Compared with porcelain insulators, they are reliable, make full use of the core rod's strength, and are easier to handle without damage.
| Parameter | Value |
| Rated Voltage | 500 kV |
| Height | 4030 ± 50 mm |
| Specified Mechanical Load (SML) | 70 kN |
| Routine Test Load (RTL) | 35 kN |
| Rod | 24 mm |
| Creepage Distance | 13000 mm |
| Dry Arcing Distance | 3730 mm |
| Lightning Impulse Withstand Voltage | ≥ 2050 kV |
| Switching Impulse Withstand Voltage | ≥ 1240 kV |
| Wet Power Frequency Withstand Voltage (1 min) | ≥ 740 kV |
| Product Standard | IEC 61109 |
| Housing Material | Silicone Rubber |
| Color | Red |
| No. of Sheds | 153 |
packing & Shipping photos
Each container is carefully loaded with our 500kV composite insulators to ensure safe transportation. For example, a standard 40-foot high-cube container can accommodate up to 660 insulators. The insulators are securely packaged, and we always ensure that the packaging effectively protects the products during shipping and handling.
