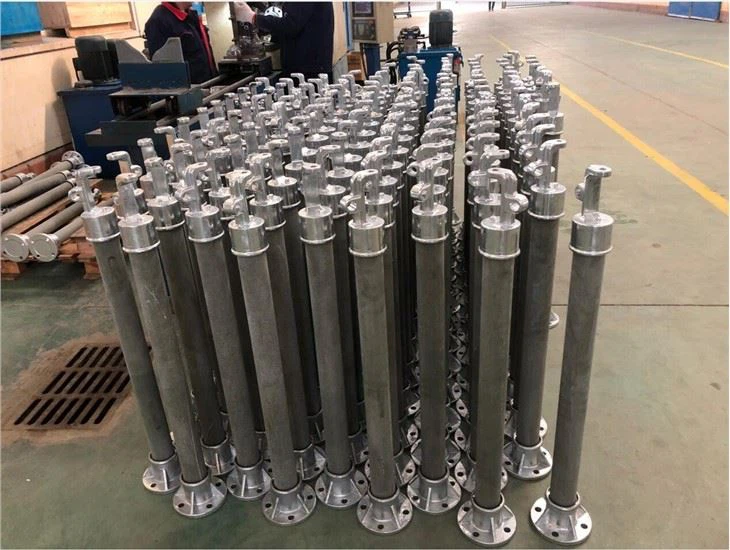

69kV Composite Line Post Insulator with Aluminium Clamp
1. Product Specification
| Model | Rated Voltage (kV) | Specified Cantilever Load (SCL) | Max. Design Cantilever Load (MDCL) | Structure Height | Dry Arcing Distance | Creepage Distance | Low Frequency Flashover Voltage (Wet/Dry) (kV) | Critical Impulse Flashover Voltage (Pos./Neg.) (kV) | |||||
| FZSW-69/21.5 | 69 | Lbs | kN | Lbs | kN | Inch | mm | Inch | mm | Inch | mm | ||
| 4837.5 | 21.5 | 2418.75 | 10.75 | 39.8''±1.2'' | 1010±30 | 31.9'' | 810 | 92.9 | 2360 | 287/311 | 530/620 | ||
2. Reference drawing
3. Characteristics
3.1 The clamp is made of aluminium alloy and suitable for conductor Φ38mm.
3.2 Raw Materials:
End-fitting:
Material: hot dip galvanized cast steel or cast iron
Minimum thickness of the galvanization is 86 μm.
Core：
Material: Epoxy & Glass Fiber
Diamter: ∅2.76"(70 mm)
Sheds：
Material: HTV Silicone
Color: Gray
4. FAQ
Q.: Please indicate your best delivery time for 399pcs.
A.: 45 days EXW Wuhan. If we have end fittings in stock, then it shall be 30 days ex-works.
Q.: Please send me approximate PACKING LIST too.
A.: Insulators use plywood cases to pack. The size is 1130*1100*685mm, 18pcs/case, each case N.W./G.W.: 333kg/373kg.
Bases are packed separately with the insulators. The size is 1060*800*485mm, 46sets/case, each case N.W./G.W.: 414kg/454kg
