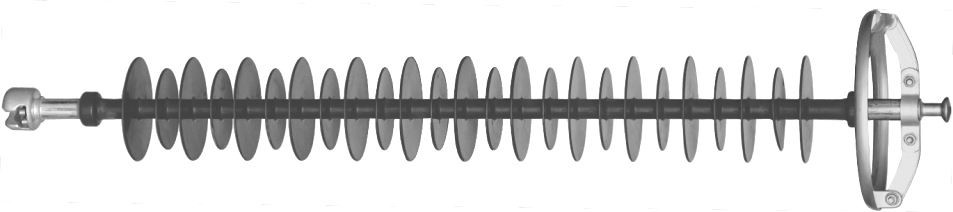

110kV Composite Suspension Insulator
Products Description
110kV composite insulator technical data sheet:
|
Model |
Rated |
Specified |
Structure |
Minimum Dry Arc Distance |
Minimum |
Lightning Impulse |
Wet Power Frequency |
|
(kV) |
(kN) |
(mm) |
(mm) |
(mm) |
≥(kV) |
≥ (kV) |
|
|
FXBW3-110/70 |
110 |
70 |
1180±15 |
1024 |
3310 |
550 |
230 |
|
Place of Origin: Wuhan, China Supply Ability: 200 Pieces per day in one machine Reference standard: ANSI ,IEC, GB |
Material: Composite Polymer Brand Name: Line Power Color: Gray, Red, Green or Customized |
Testing Equipment
Sound Testing Equipment
The company is equipped with 1000kV Power Frequency Testing Transformer, 1800kV Impulse Voltage Generator set and 2000kN Automatic Tensile Test Machine, as well as well-equipped Physical Laboratory and Electrical Laboratory.
Advanced Manufacturing Equipments
The company holds the most advanced Automatic Silicone Injection Molding Machines and Voice-operated Displacement Crimping Machines which means the world's most advanced process technology level.
With stable mechanical & electrical performance and excellent pollution-resistant performance, our composite insulators for electrified railway provide reliable protection to the safety running of electrified railway.The comprehensive pass rate of the product process reached more than 97% at a time, and the customer satisfaction reached more than 99%.
We have full range test equipments which help us to perform kinds of tests which comply with IEC 61109 and IEC 61952.
FAQ
1. Do you have a catalog? Could you send me your catalogue?
We have a catalogue. Please contact us, we can send you product catalog online or email.
2. Can your factory produce according to customer's requirements?
Yes,customized products are available.
3. What's your packing standard?
Usually we use standard cartons for packing or according to customers' requirements, main package is plywood cases .
4. What after-sales service do you provide?
12 months after-sales service available.
5. If you can accept small trial order?
Yes, small trial order is accepted.
6. What is the MOQ?
It depends on the molds.
7. Do you have type test report for polymer insulators?
Yes, we have several type test reports for polymer insulators across different voltage ratings.
All reports are issued by an independent laboratory certified by CNAS.
