Insulator Suspension Long Rod Polymer
1. Technical Specificatio:
| Model | Rate Voltage (kV) | Specified Mechanical Load (kN) | Routine Test Load (kN) | Structure Height (mm) | Dry Arcing Distance (mm) | Min. Creepage Distance (mm) | Power Frequency Withstand Voltage (Wet 1 min) | Lightning Impulse Withstand Voltage (Pos./Neg.) |
| FXBW-145/120 | 145 | 9.5 | 7.2 | 1430±30 | 1200 | 3620 | 330kV | 665kV/655kV |
2.Type test report
Comply with IEC 61109 INSULATORS FOR OVERHEAD LINES – COMPOSITE SUSPENSION AND TENSION INSULATORS FOR A.C. SYSTEMS WITH A NOMINAL VOLTAGE GREATER THAN 1 000 V – DEFINITIONS, TEST METHODS AND ACCEPTANCE CRITERIA, enterprise standard, and buyer's technical requirements, all tests past.
All of our test reports are endorsed by CNAS.
3. Packing and Shipment
Composite insulators are packed with strong plywood cases which could be easy for loading and unloading by forklift and it is also convenient for long distance combined transportation.
| L mm | W mm | H mm | Qty. per case (pcs) | N.W. (kg) | G.W. (kg) | Mea. (m³) |
| 1580 | 1050 | 735 | 60 | 312 | 362 | 1.22 |
4. Manufacturing technique

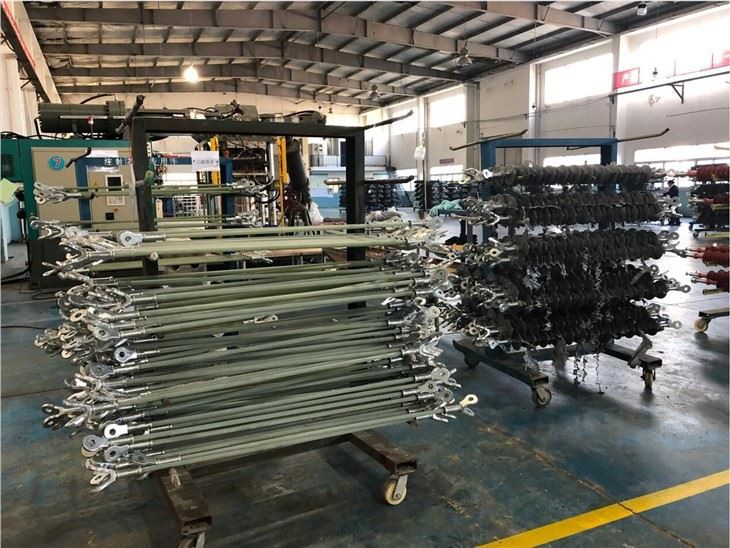

For this kind of the insulator is producing as one piece, like below photo:
5. Application
