Pin Type Insulator 11kv

The Pin Type Insulator 11kv is used in power distribution. It is placed on the cross arm of the supporting tower. The pin insulator has grooves on the upper end for keeping the conductor. The conductor is tied to the insulator on the top groove on straight line positions and side groove in angle positions by annealed binding wire of the same material as that of the conductor. A lead thimble is cemented into the insulator body to receive the pin.

The pin insulator uses non-conducting material like porcelain, ceramic, silicon rubber, polymer, etc., The weight of the Pin Type Insulator 11kv material is more as compared to porcelain insulator material.

For low voltage, the single piece pin insulator is used, and for high voltage two or more pieces are cemented together for maintaining the proper thickness of the insulator. The insulator provides the adequate path to the leakage current.

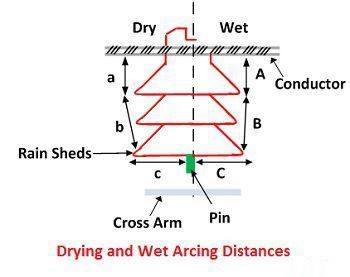

The flashover voltage for the moist and dirty surface is less than that for the clean and dry surfaces. The total dry arcing distance is the sum of all the direct distances through the air. It is represented by (a+b+c). The total wet arcing distance is (A+B+C).

Advantages of Pin Insulator

1. It has high mechanical strength.

2. The pin type insulator has good creepage distance.

3. It is used on the high voltage distribution line.

4. The construction of the pin type insulator is simple and requires less maintenance.

5. It can be used vertically as well as horizontally.

Disadvantages of Pin Insulator

1. It should be used with the spindle.

2. It is only used in the distribution line.

3. The voltage rating is limited, i.e., up to 36kV.

4. The pin of the insulator damaged the insulator thread.
