Production Introduction
Pin Post Composite Insulator
| Rated Voltage | Height | Dry Arcing Distance | Creepage Distance | Specified Cantilever Load (SCL) |
Rod | No. od sheds | Wet Power Frequency Withstand Voltage (kV) |
Lightning Impulse Withstand Voltage (kV) |
| 15kV | 225±10mm | 140mm | 255mm | 7.5kN | 24mm | 2 | 40 | 110 |

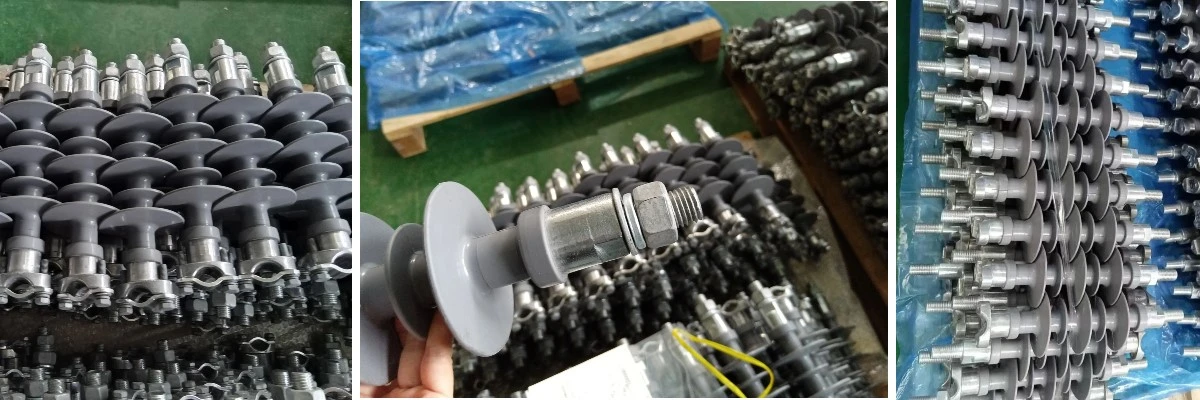

| Composite Line Pin Insulator | |
|
The composite pin-type insulator features high resistance to bending, impact, and seismic forces, along with excellent explosion-proof performance. It offers reliable internal insulation and is lightweight, making it an ideal replacement for traditional toughened glass insulators.
|
Advantage
| Item | Pin Post Composite Insulator |
| Explosion-Proof Properties | Safety: The materials used in composite insulators are inherently safer and less likely to explode compared to traditional insulators, enhancing overall safety in the power grid. |
| Reliable Insulation | Internal Insulation: The internal insulation properties of composite materials ensure reliable performance in various environmental conditions, preventing electrical leakage and enhancing system reliability. |
| Lightweight | Ease of Handling: Composite insulators are significantly lighter than traditional toughened glass insulators, facilitating easier transportation, installation, and maintenance. |
|
Ideal Replacement for Traditional Toughened Glass Insulators: Upgraded Performance: The combination of mechanical strength, safety, and reliability makes composite insulators a superior choice for modern power systems, replacing older technologies like toughened glass insulators. Longer Service Life: The durable nature of composite materials contributes to a longer service life, reducing the need for frequent replacements and lowering maintenance costs. In summary, composite pin-type insulators represent a significant advancement in insulator technology, offering numerous benefits that make them the preferred choice for modern electrical infrastructure. |
|
