Production Introduction

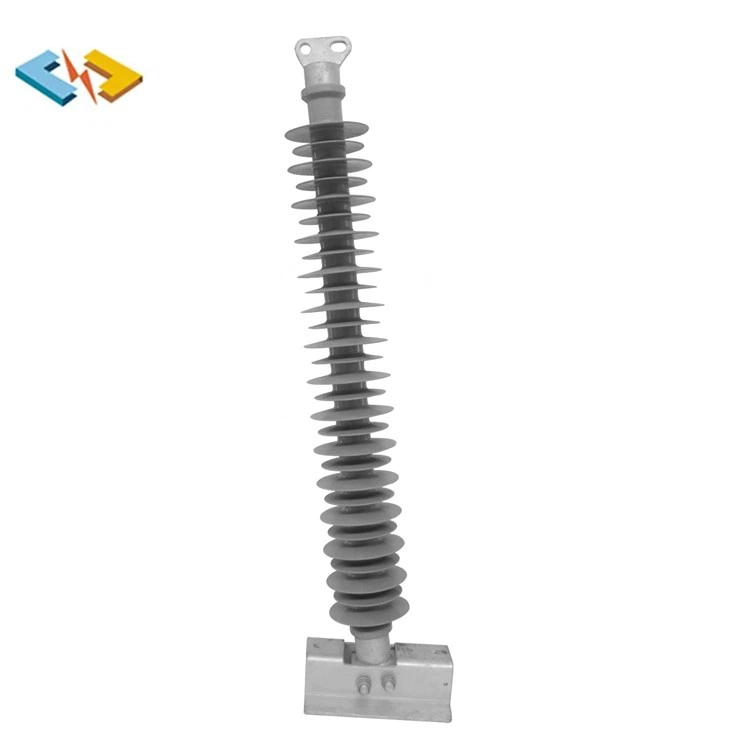

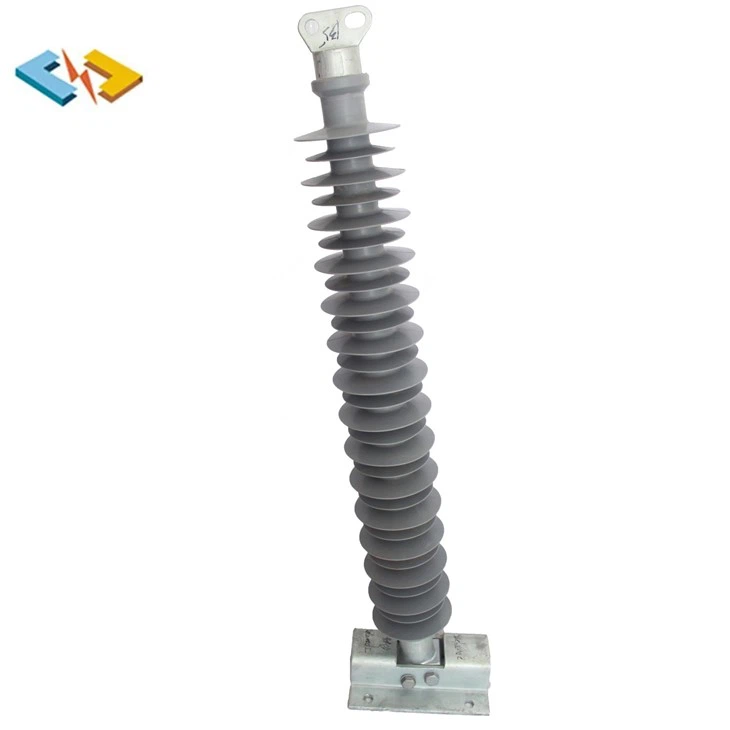

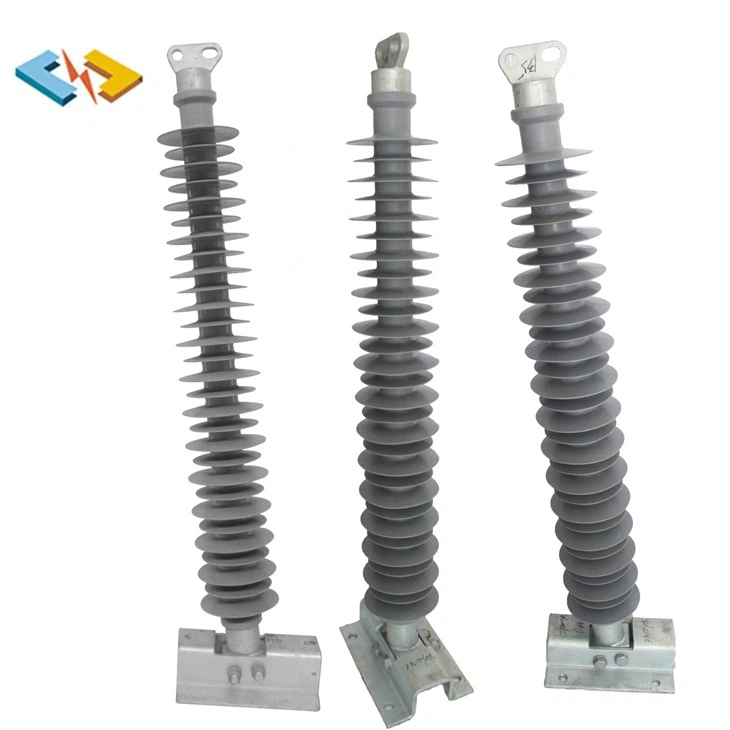

Composite Post Line Insulator
A composite line post insulator is a type of electrical insulator used in overhead power lines to support and separate conductors. It consists of a fiberglass core, polymeric housing, and metal end fittings. The design provides high mechanical strength and electrical insulation while being lightweight and resistant to environmental factors such as UV radiation, pollution, and moisture. Composite line post insulators are preferred over traditional ceramic or glass insulators due to their superior performance, reduced maintenance needs, and enhanced durability. They are commonly used in transmission and distribution systems to ensure the safe and efficient delivery of electrical power.
Silicone Rubber Housing
Better hydrophobicity
Better hydrophobicity migration performance
Better pollution resistance
Excellent electrical insulation properties
Excellent aging resistance
Corrosive Resistance Fiberglass Core
Excellent resistance to high temperature, stress corrosive & acid attack
Better damping Performance
High tensile strength (>1200Mpa)
Excellent creep resistance
Excellent anti-fatigue fracture properties
Crimping & Multiple Sealing
High mechanical strength
Small dispersion
Reliable sealing performance between rods and end fittings

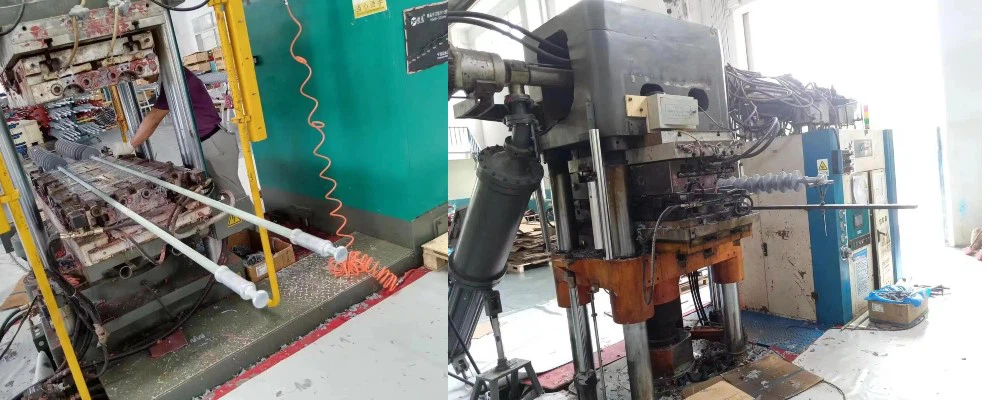

Prouduction Line
Test Equipment
Package
