Polymer Post Insulator With Flange Base
Products Description
What's the substation polymer insulator?
These types of insulators are mainly used in power station systems for the support and insulation of high-voltage busbars and reactors, and can also serve as insulating support components in disconnector switchgear.
In actual operation, these insulators primarily bear bending loads; when used as components of disconnectors, they also need to withstand certain torsional loads.
The main difference between power station post composite insulators and line post composite insulators lies in their application environments.
Line post composite insulators are mainly used in high-voltage transmission lines, while power station post composite insulators are mainly used in substations or converter stations, and can also be used for the support and insulation of busbars in switchgear and pantographs on electric locomotives.
sPECIFICATION
Dimensions:
1.Height:457±10mm
2.Dry Arcing Distance:380mm
3.Diameter of the Rod:φ38mm
4.Number of sheds:9
Raw Materials:
1.End-fitting
2.Material:Hot Dip Galvanized Steel
3.Mean coating thickness(min):86um.
4. Core Material:Epoxy&Glass Fiber
5. Weather sheds:HTV Silicone
6.Color:Gray
Mechanical
1.Max Design Cantilever Load(MDCL):4.4kN
2.Specified Cantilever Load(SCL):8.8kN
3.Specified Tension Load(STL):53.3kN
Electrical
1. Rated voltage:34.5kV
2. Power frequency withstand voltage(Wet 1min):80kV
3.Lightning Impulse withstand Voltage:200kV
4.Standard:IEC 61952
Product Structure
The basic structure of a single component consists of upper and lower flanges, an umbrella sleeve, and a central core. High-voltage support columns are composed of multiple components connected by bolts.
The central core can have a single solid core drawn rod structure, a multi-solid core combined drawn rod structure, a single solid core drawn rod with an external winding structure, or a hollow strip with an internal umbrella cluster structure.
1. Single solid core drawing rod structure;

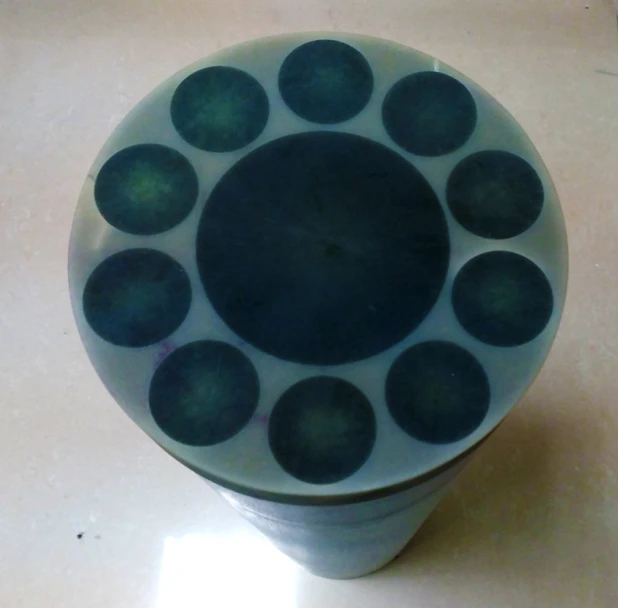

2. Multi-solid core composite drawing rod;
3. Single solid core drawing rod with external winding;
4. Hollow tube with inner umbrella skirt structure;
6. Porcelain core structure.
FAQ
1. What after-sales service do you provide?
12 months after-sales service available.
2. If you can accept small trial order?
Yes, small trial order is accepted.
3. What is the MOQ?
It depends on the molds.
4. Do you have type test report for polymer insulators?
Yes, we have several type test reports for polymer insulators across different voltage ratings.
All reports are issued by an independent laboratory certified by CNAS.
5. Can you arrange the FAT test before the shipment?
Yes, we can perform the FAT according to IEC or ANSI standards in our factory.
