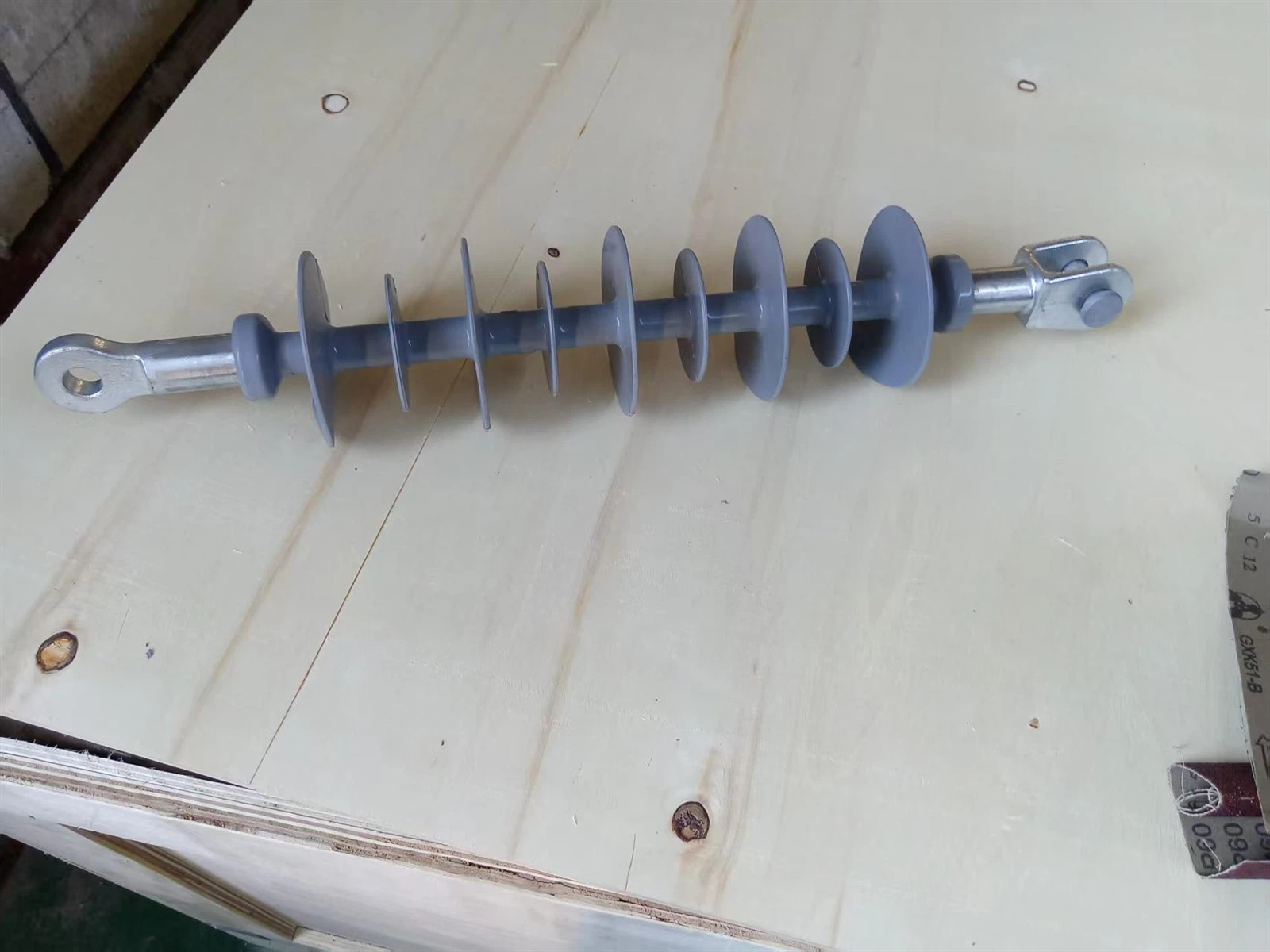

25kV DS Insulator With Silicone Rubber
Products Description
These polymer deadend insulators are engineered for high durability and dependable performance, maintaining stable and secure power distribution under demanding environmental conditions.
The Product
Technology First
Dimensions
Height:432 ±10mm
Min Dry Arcing Distance:279mm
Min Creepage Distance:600mm
Diameter of the rod:16mm
Coupling Dimensions:Clevis/Tongue
Number of sheds:6
Raw Materials
Endfitting:
Material:
Clevis: Hot Dip Galvanized Steel
Tongue:Hot Dip Galvanized Steel
Core Material:Epoxy&Glass Fiber, Acid-Resistant type
Weather sheds Material:HTV Silicone
Color:Gray
Mechanical
Specified Mechanical Load(SML):70kN
Routine Test Load(RTL):35kN
Standard:ANSI C29.11
Electrical
Rated Voltage:25kV
Power Frequency Flashover Voltage(Dry):130kV
Power Frequency Flashover Voltage(Wet):100kV
Critical Impulase Flashover Voltage:190kV
Standard: ANSI C29.11
25kV Deadend insulator technical data:
|
Rated Voltage |
Height |
Min. Dry Distance |
Min. Leakage Distance |
End Fittings |
SML |
RTL |
Wet Power Frequency Withstand Voltage |
Lightning Impulse Withstand Voltage |
|
25 |
410±15 |
350 |
650 |
Clevis and Tongue |
70 |
35 |
80 |
190 |
FAQ
1. What's your main products?
High Voltage Insulator / Medium Voltage Insulator:Suspension Polymer Insulator, Post Line Polymer Insulator, Substation Insulator, Railway Insulator, Pin Insulator.
2. Are you a factory or trading company?
We are a professional ISO-certified factory.
3. Can your factory produce according to customer's requirements?
Yes,customized products are available.
4. Where is your factory located? How can I visit there?
Our factory is located in Wuhan City,Hubei Province, China.
You are always welcome to visit us.
We also welcome online video inspections of our factory at any time.
5. What after-sales service do you provide?
12 months after-sales service available.
6. If you can accept small trial order?
Yes, small trial order is accepted.
