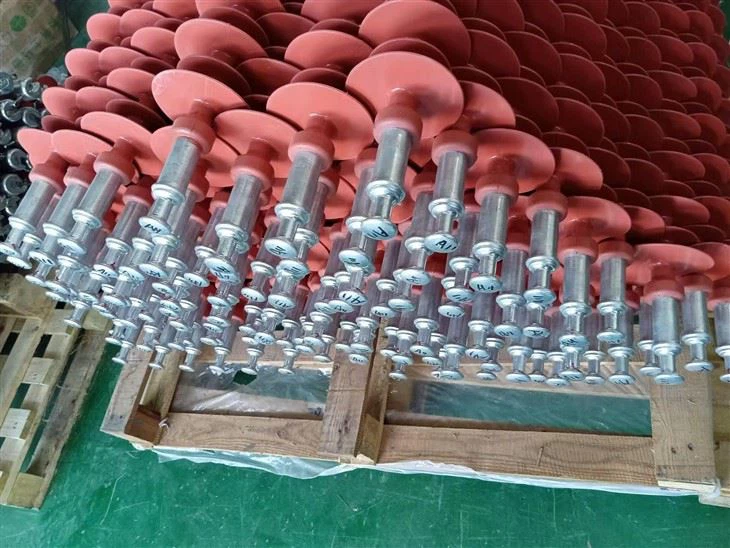

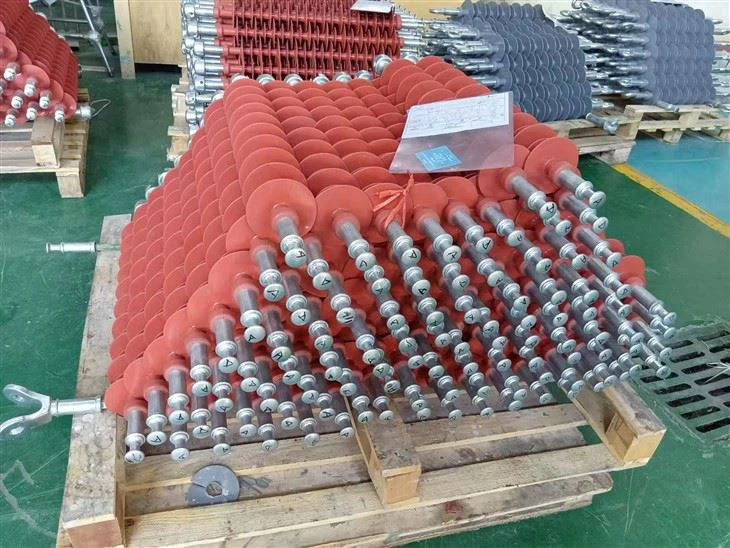

35kV 70kV High Tension Long Rod Dead End Suspension Insulators
Products Description
Long Rod Insulator Description
1. Zero-value self-breakage, easy to detect: Composite suspension insulators feature zero-value self-breakage. Observation can be done from the ground or from a helicopter, eliminating the need for pole-climbing and piece-by-piece inspection, reducing labor intensity.
Products from imported production lines have an annual self-breakage rate of 0.02-0.04%, saving on line maintenance costs. Excellent arc and vibration resistance: Even after lightning strikes, the new surface of the glass insulator remains smooth glass with a tempered internal stress protection layer, thus maintaining sufficient insulation energy and mechanical strength.
In multiple incidents of conductor galloping caused by icing on 500kV lines, composite suspension insulators subjected to conductor galloping showed no degradation in electromechanical performance after testing.
2. Good self-cleaning performance and not prone to aging: According to widespread feedback from the power sector, glass insulators are not prone to dirt accumulation and are easy to clean. Glass insulators operating on southern lines are relatively clean after rain.
The electromechanical performance of glass insulators on lines in typical areas was measured periodically after operation. The accumulated data of thousands of data showed that the electromechanical performance of glass insulators after 35 years of operation was basically the same as that at the time of manufacture, and no aging phenomenon was observed. The main capacity is large and the voltage distribution in the string is uniform. The dielectric constant of glass is 7-8, which makes the composite insulator have a large main capacitance and uniform voltage distribution in the string. This is beneficial to reduce the voltage borne by the insulators near the conductor side and the grounding side, thereby reducing radio interference, reducing corona loss and extending the life of glass insulators. Operational practice has proved this [1].
Types of Composite Insulators
- FXBW - Rod Suspension Composite Insulator
- FPQ - Composite Pin Insulator
- FZSW - Composite Post Insulator
- FS - Composite Crossarm Insulator
- FQJ - Composite Roof Insulator for Electrified Railways
high tension insulators Performance Characteristics:
- Compact and Lightweight: The insulator is approximately 1/5 to 1/9 the weight of porcelain insulators of the same voltage level, making it easier to transport and install.
- High Mechanical Strength and Reliability: Composite insulators provide stable, reliable performance, ensuring safe operation of transmission lines.
- Excellent Electrical Properties: The silicone rubber housing has high hydrophobicity and migration properties, with strong resistance to contamination and flashover, enabling reliable operation in heavily polluted areas with minimal maintenance.
- Chemical and Aging Resistance: With robust resistance to acid, alkali, and thermal aging, the insulator maintains excellent sealing to protect internal insulation from moisture.
- High Impact and Anti-Brittleness: Composite insulators are highly resistant to shock and vibration, significantly reducing the risk of brittle failure.
- Interchangeability: They are compatible with porcelain insulators and can be used interchangeably in applications.
The silicone rubber housing shaped by wholy injection has good hydrophobicity, hydrophobicity migration and soil resistance, as well as excellent electrical insulation properties and aging resistance, which could prevent effectively those accidents of pollution flashovers so as to ensure the safe running of high voltage transmission lines.
The end fittings are crimped onto the fiberglass rods with voice-operated displacement crimpers. Thed insulators with this crimping technique have high mechanical strength and small dispersion.
Wuhan Line power holds the most advanced Automatic Silicone Injection Molding Machines andVoice-operated Displacement Crimping Machines,which means the world's most advanced process technology level.
FAQ
1. How's the delivery time?
Usually it will take about 30~60 days for production.
For small-volume orders, the delivery time can be 1 to 2 weeks depending on the available materials in our warehouse.
2. Tell me the standard of package?
Usually we use standard cartons for packing or according to customers' requirements, main package is plywood cases
Wooden cases are available for heavy cargo and long insulators.
3. Could you offer Form A or C/O etc. certificate of origin ?
Yes, of course. We can provide them as required.And COC documents are available.
4. Would you accept to use our logo ?
If you have a good quantity,it is absolutely no problem to do OEM.
5. What's your main products?
High Voltage Insulator / Medium Voltage Insulator:Suspension Polymer Insulator, Post Line Polymer Insulator, Substation Insulator, Railway Insulator, Pin Insulator.
