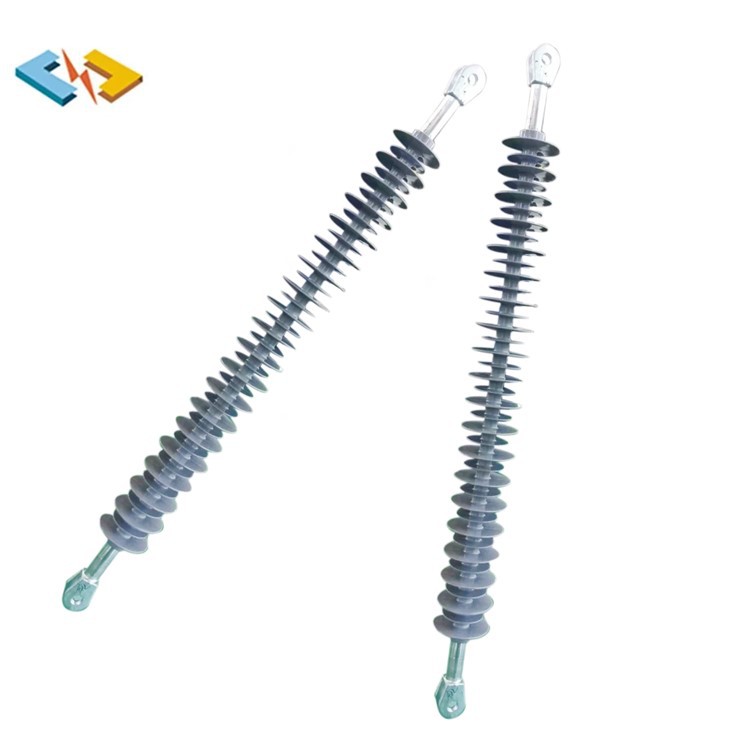

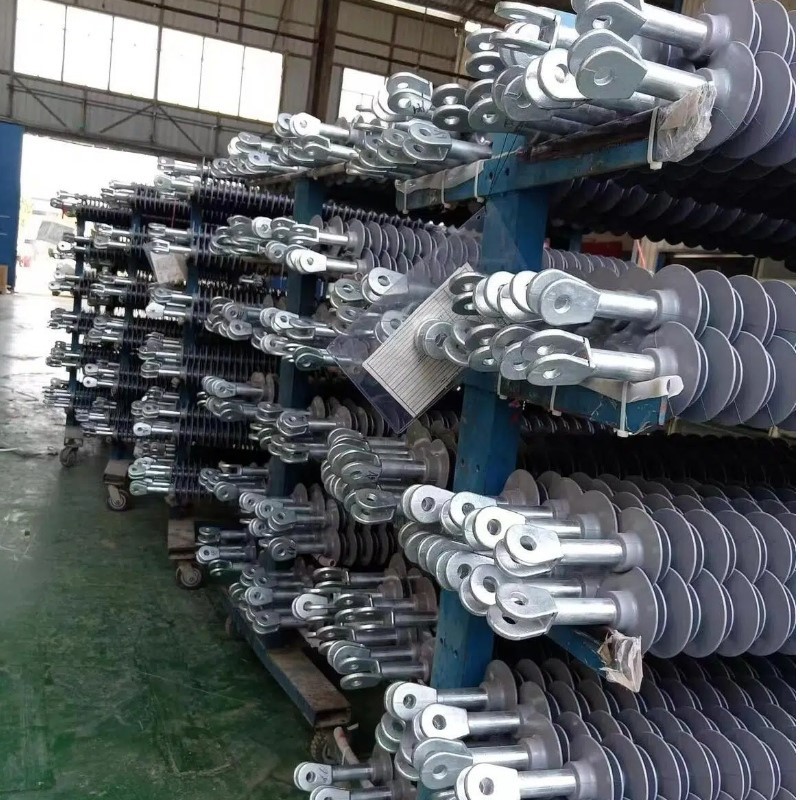

115kV Polymer Suspension Insulator With Clevis
Products Description
Y-Clevis type connectors are used to connect Clevis type tongue insulators to other related fittings in the insulator string. Their unique bent bolt structure provides additional movable hinge points for the assembly, thus increasing connection flexibility.
Material Specifications:
Body: Hot-dip galvanized ductile iron
Accessories: Hot-dip galvanized steel
Composite insulators with clevis joints (fitting forks) are primarily used in lines or equipment where a "pin connection" is required.
Due to the ease of installation and large range of motion of the clevis structure, it is very common in power distribution and transmission lines.
Main applications include:
1. Suspension Lines
Used for suspending conductors.
Common structures:
Tongue-Clevis
Ball-Clevis
Eye-Clevis
Applications:
10kV–220kV power distribution and transmission lines
Straight-line towers
Small-angle towers
Features:
Can withstand vertical conductor loads
Flexible connections
Easy installation and maintenance
2. Tension Lines (Dead End/Tension)
Used to withstand conductor tension.
Commonly used in:
Line terminals
Angle towers
Large span areas
Clevis connections can:
Compatible with yoke plates, shackles, link fittings, etc.
Accommodate certain angular offsets
Reduce mechanical stress concentration
3. Distribution Lines
Very common in 15kV, 25kV, and 35kV distribution systems.
For example:
polymer deadend insulator
line post insulator
guy strain insulator
Many ANSI structures use:
Eye-Clevis
Clevis-Clevis
4. Substation Equipment Connections
Some substation composite insulators (especially post or busbar supports) also use Clevis hardware for easy connection with:
disconnect switch
busbar
bracket.
Advantages of Clevis hardware:
Easy installation
Simple on-site assembly via pin connections.
Good flexibility
Allows a certain angle of sway, reducing uneven stress.
High versatility
Compatible with various line fittings such as: tongue, eye, socket, y-clevis, shackle, etc.
High mechanical strength
Suitable for medium to high mechanical load lines
Our Products
Clevis Tongue
70kN/120kN/160kN available
Cast Iron Or Cast Steel,Hot Dip Galvanized
Minimum thickness of the galvanization：86μm.
The Drawing
Composite Insulator
