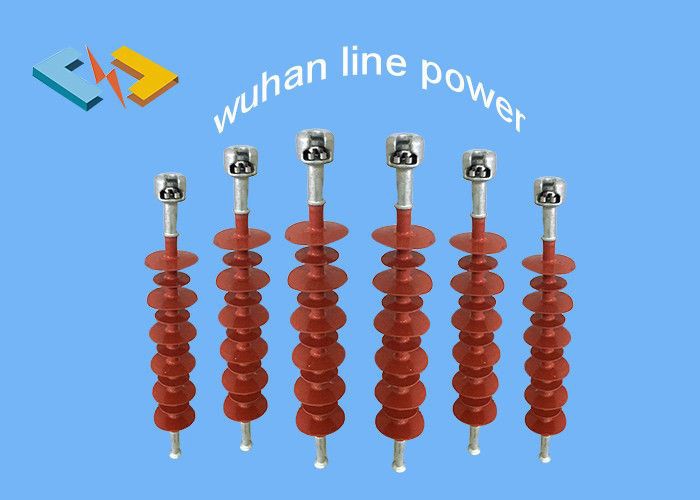

220kV long rod insulator technical data:
| No. | Model | Rated Votage kV | Rated mechanical tensile load kN | Coupling Size | Structure Height, mm | Min. nominal insulation distance, mm | Min. nominal creepage distance, mm | Lightning impulse withstand voltage kV (peak)≥ | Wet Switching Impulse withstand voltage kV (peak)≥ | Power frequency wet withstand voltage kV (RMS) ≥ |
| 1 | FXBW3-220/100(120) | 220 | 100(120) | 16 | 2150 ±30 | 1964 | 6400 | 1000 | — | 395 |
| 2 | FXBW4-220/100(120) | 220 | 100(120) | 16 | 2240 + 30 | 2049 | 6650 | 1000 | — | 395 |
| 3 | FXBW3-220/160(180) | 220 | 160(180) | 20 | 2150 ±30 | 1904 | 6810 | 1000 | — | 395 |
| 4 | FXBW4-220/160(180) | 220 | 160(180) | 20 | 2240 ±30 | 1980 | 7100 | 1000 | — | 395 |
| 5 | FXBW-220/210(240) | 220 | 210(240) | 20 | 2300 ±30 | 1979 | 7090 | 1000 | — | 395 |
| 6 | FXBW-220/300 | 220 | 300 | 24 | 2350 ±30 | 2001 | 6905 | 1000 | — | 395 |
| The product size, characteristics, connection and color of the sheds can be designed and manufactured according to the specific requirements of customers. | ||||||||||
Some key points for our insulators.
Trading and shipping terms:
Place of Origin: Wuhan China
Certification: ISO9001, ISO14001, OHSAS 18001<
Minimum Order Quantity: 100
Price: Negotiable, for more details, be free to send enquiry to our sales.
Delivery Time: 30~60 days EXW Wuhan
Payment Terms: T/T, L/C
Wuhan Line Power could provide kinds of packing methods, such as solid wood case, plywood case and paper tuber for 220kV Long Rod Silicone Rubber Composite Insulators. Customized packing method is available also.
