RTV Silicone Rubber Coating For Glass Insulators

Coating glass insulators with silicone rubber is primarily to improve their resistance to flashover and operational reliability in polluted environments. This is particularly common in coastal areas, industrially polluted areas, and areas prone to dust storms or salt spray. The core reasons are as follows:

1️⃣ Improved Hydrophobicity: The surface of glass insulators is hydrophilic, easily forming a continuous water film when exposed to rain or humid environments.

Silicone rubber, on the other hand, is highly hydrophobic, causing water to form droplets instead of a film.

The effects are:
Reduced surface leakage current
Lowered flashover risk
Improved operational safety

2️⃣ Prevention of Pollution Flashover: In polluted environments, the following pollutants easily accumulate on the insulator surface:
Salt spray (at seaside)
Industrial dust
Coal ash
Dust
When wet, these pollutants can form a conductive layer, potentially causing pollution flashover.

Silicone rubber coatings can:
Maintain hydrophobicity
Reduce the formation of conductive water films
Significantly reduce the probability of flashover

3️⃣ Hydrophobic Transfer
Silicone rubber has a very important characteristic:

➡ Hydrophobic Transfer
Even if contaminants adhere to the surface, the low-molecular-weight siloxanes in the silicone rubber migrate to the surface of the contaminant layer, making the contaminant layer hydrophobic as well.
This means:
Even when dirty
The surface is still less likely to form a water film

4️⃣ Extend the lifespan of old line insulators
Many transmission lines originally used:
Tempered Glass insulators
Porcelain insulators
Replacing them directly with composite insulators would be costly.

Therefore, many power companies choose to:

➡ Apply RTV (Room Temperature Vulcanized Silicone Coating) to old insulators.

Advantages:
No need to replace insulators
Simple construction
Low cost

5️⃣ Improved arc resistance and weather resistance
The silicone rubber coating also:
Suppresses dry-charge arcing
Resists UV radiation
Resists aging
Improves the long-term stability of insulators

The current market outlook for coating glass insulators with silicon rubber (RTV silicon coating) is generally one of "stable growth, but partial replacement by composite insulators in the long term." This can be viewed from three aspects: industry trends, market demand, and technological substitution.

I. Short- and Medium-Term: Market Demand Continues to Grow

From a global power grid operation and maintenance perspective, the demand for RTV coatings is actually increasing.

1️⃣ Aging Transmission Lines Need Upgrading

Many countries still use a large number of glass or porcelain insulators, and replacing them all directly is very costly.

Therefore, power companies typically choose to:

➡ Spray an RTV silicone rubber coating onto existing insulators

This can:

Improve hydrophobicity

Reduce leakage current

Prevent flashover
RTV coatings can significantly improve the insulator's resistance to contamination and reduce maintenance and cleaning frequency.

2️⃣ Global Power Grid Expansion Drives Demand

With the expansion of power grids and the growth of electricity demand, many countries are beginning to strengthen insulation reliability.

Research shows that:
RTV coatings account for approximately 54% of the market share in transmission lines.
Power companies are the largest users, accounting for over 60% of demand.
Especially:
HVDC transmission lines,
Ultra-high voltage transmission lines, and
coastal transmission lines all require improved insulation performance.

3️⃣ Rapid growth in demand in emerging countries.
Market research shows that:
Asia is currently the largest market.
The Middle East and Africa are experiencing the fastest growth, with an annual growth rate of approximately 9%.
This is because these regions:
have high levels of dust storms,
severe salt spray, and
rapid power grid construction.
RTV coatings can significantly reduce flashover accidents.

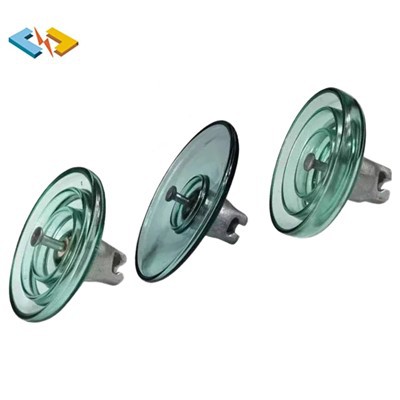

glass insulator, power line glass insulator, transmission line glass insulator, high voltage glass insulator, electrical glass insulator,overhead line glass insulator, suspension glass insulator, disc glass insulator, toughened glass insulator, cap and pin glass insulator, U70BL glass insulator, U120B glass insulator, U160BS glass insulator
